Introduction to Project Dashboard

  • Updated

Overview

Roles: Admin, Supervisor | Interface: Web

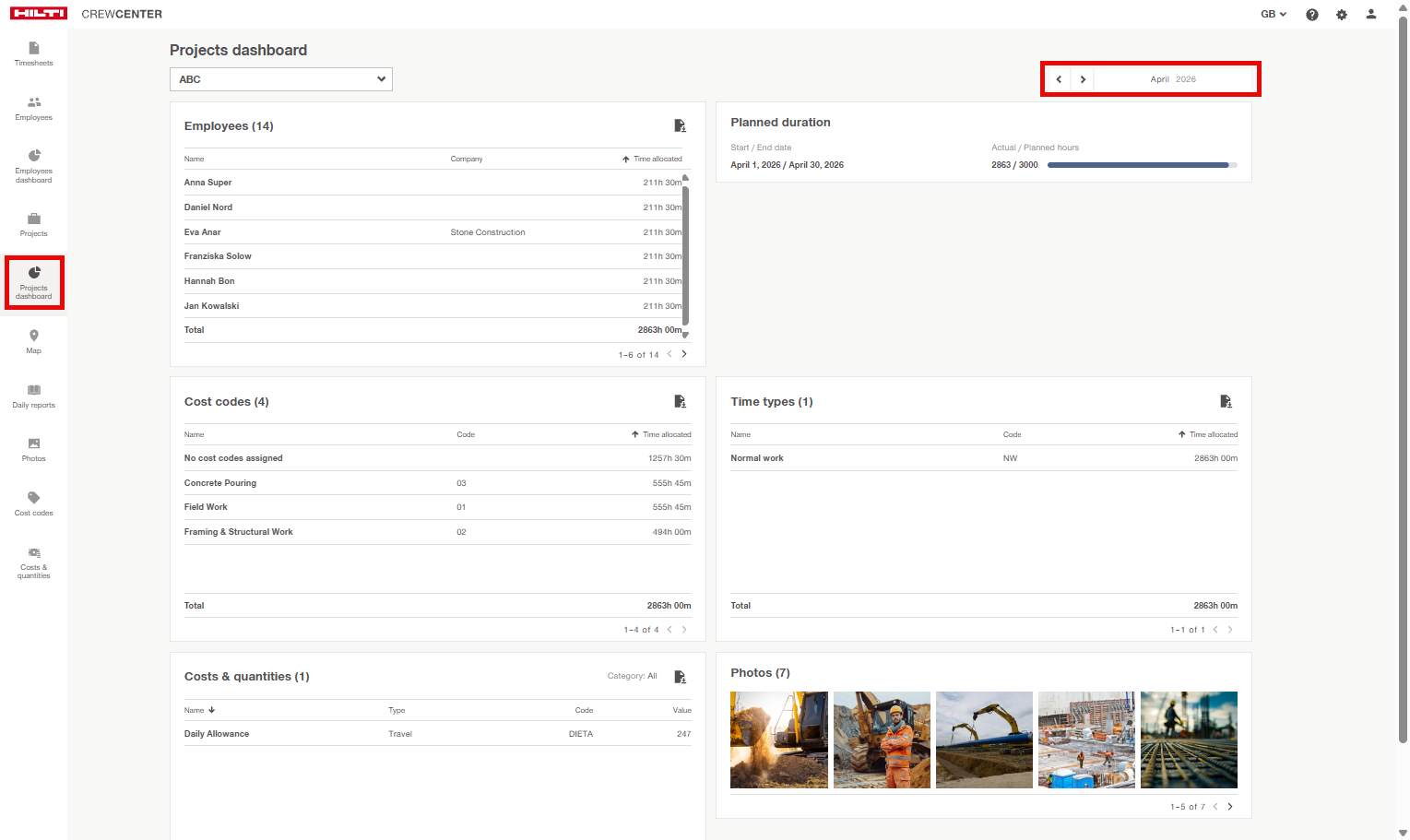

The Project Dashboard in CrewCenter provides a high-level, visual overview of project performance and workforce activity. It allows users to track key metrics such as time spent by employees, cost codes, time types, costs & quantities and photos uploaded for the project in real-time.

Note: The Project Dashboard is available on the Web platform only.



Project Dashboard Features

The Project Dashboard is a central hub that consolidates data from CrewCenter to give a clear overview of project health.



The dashboard presents six categories of data, providing a general overview of project operations for the selected time period:
  • Employees (Time Spent): Breakdown of total hours worked by each employee assigned to the project.
  • Planned Duration: Visual comparison of actual hours versus planned hours. (Future Feature)
  • Cost Codes: Tracking of labor allocation across work packages or tasks to ensure alignment with the budget.
  • Time Types: Visibility into different categories of time, such as regular hours, overtime, and travel time.
  • Costs & Quantities: Expenses and quantities included in the overall project cost.
  • Photos: Images uploaded and linked to the project.
Note: The planned duration can only be defined if the project includes a start date, end date and estimated hours.

User Roles and Access

Access to the Project Dashboard is determined by the user's role and project assignments within CrewCenter.

  • Administrator: Can view the Project Dashboard for all projects across the organization.
  • Supervisor: Can access the dashboard only for the specific projects they are responsible for.

How to Use the Project Dashboard

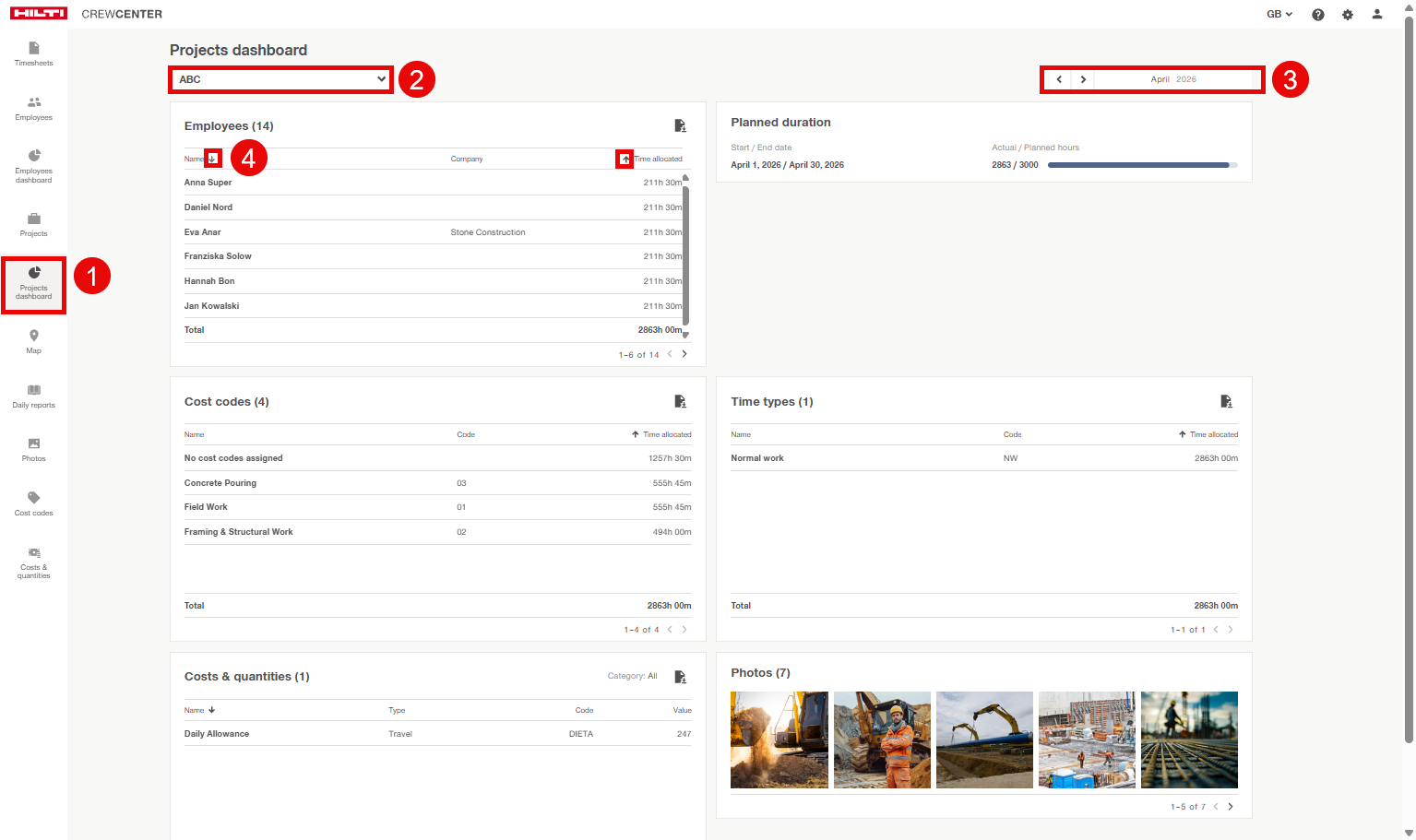

To access the Project Dashboard and view the relevant information:

  1. Log into CrewCenter Web and select the Project dashboard tab from the main menu.
  2. Select the Project from the Project Dashboard
  3. Specify the time frame (day/month/week/custom)
  4. Sort the data alphabetically and arrange the time allocated in either ascending or descending order within each area.

Note: You can click on the pictures to see them in their full size.



How to Export data from the Project Dashboard

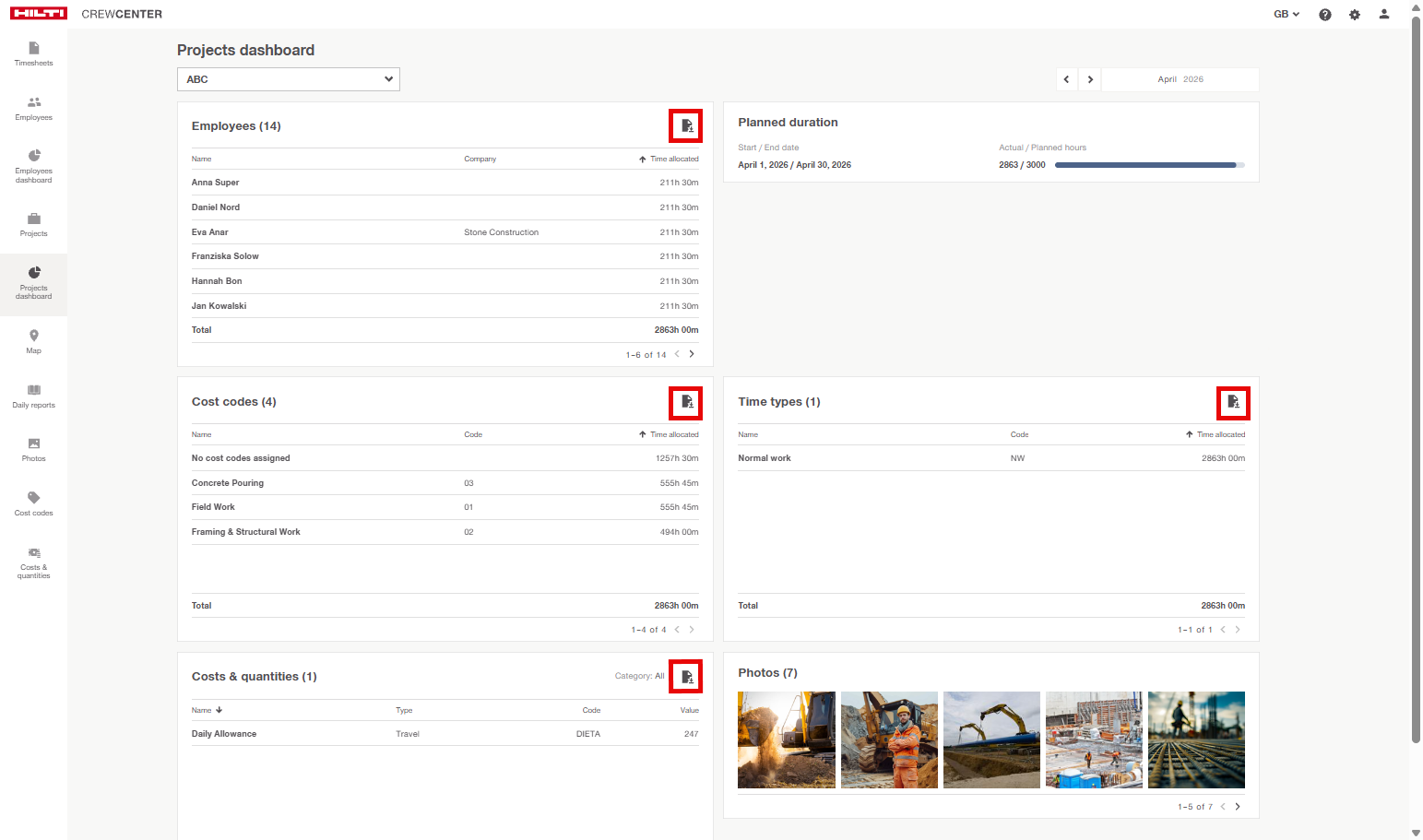

To export data from any section on the Project Dashboard, just click the Export icon located at the top right of that section.

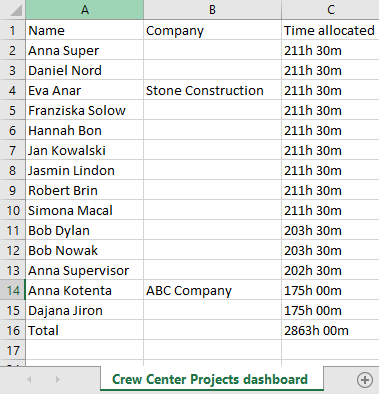

The report will be generated in CSV format and downloaded to your local machine, showing the visible data from the area exported.
